【 Magnetic Pump TMD Series】Thaidean Machinery & Chemical Co.,Ltd.

seal-priming design: the suction is strong, and a check valve design, prevent the reverse flow of liquid in the pump

LOWER NOISE AND VIBRATION,EASY INSTALLATION,LONGER BEARING LIFE

CHEMICAL LIQUID MEDICINE FILTER (TFL/TFX SERIES )

SUPERIOR COMBINATION OF MATERIALS AND THE LEAK-FREE,SEALLESS DESIGN.EXCELLENT CORROSION RESISTANT

[good quality even better, faster service even faster]

Magnetic drive pump series

seal-free,no leakage,designed with an emphasis on improved durability
excellent corrosion resistant materials such as SIC ,ceramics etc…
easy to assemble,Wide application
application:PCB manufacturing process、chemical industry、filtration、etching、electroplating、heat exchanger、seawater aquaculture

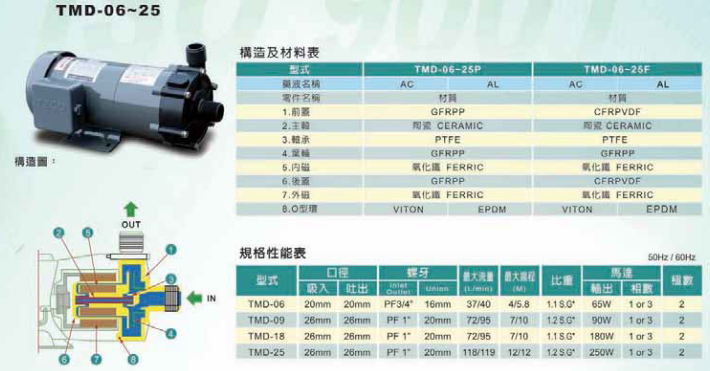

tmd06~25

tmd37~350

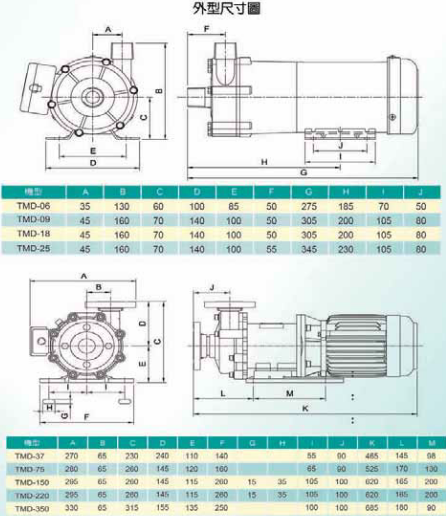

tmd dimension drawing

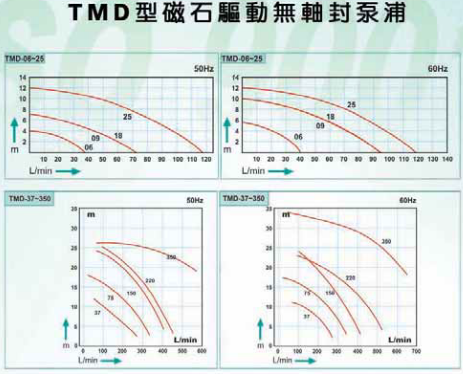

tmd performance curve
