The practical self-priming mechanical pump

  1. adopt FRPP、PVDF material injection molding, strong corrosion resistance, strong acid, strong alkali resistance。

  2. suitable temperature, FRPP-below70°C / PVDF-under 100°C。

  3. the unique design of shaft seal used design self-cooled, without additional cooling。

  4. seal-priming design: the suction is strong, and a check valve design, prevent the reverse flow of liquid in the pump 。

  5. chemical liquid, loop or transport process, electroplating, chemical industry, leather, dyeing, wastewater, waste gas treatment, etc。

tgd decomposition figure

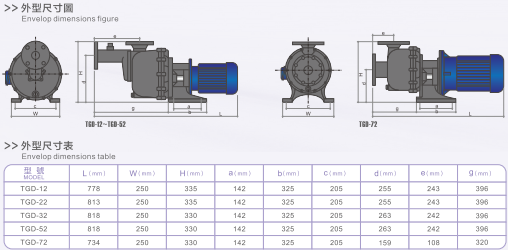

tgd envelop dimensions figure

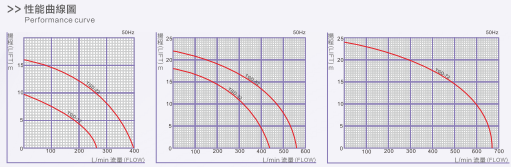

tgd performznce curve

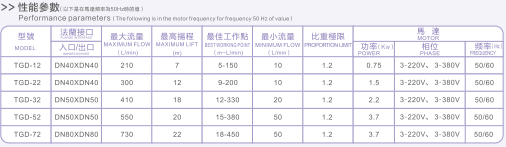

tgd performance parameters
