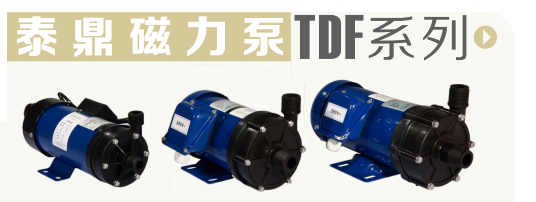

Excellent corrosion resistance,long service life

  1. the pump body adopts FRPP and PVDF material injection molding, in accordance with the different solution ph select material。

  2. suitable temperature, FRPP-70°C / PVDF-below 100°C。

  3. magnetic synchronous drive, without shaft sealing contact friction, low consumption, high efficiency,avoid media leaks。

  4. the assembly simple, the structure is exquisite performance is high,easy to tear open outfit。

  5. wide range of USES,PBC process,chemical industry,filtration cycle,etching,electroplating,surface treatment,sewage treatment and so on。

tdf

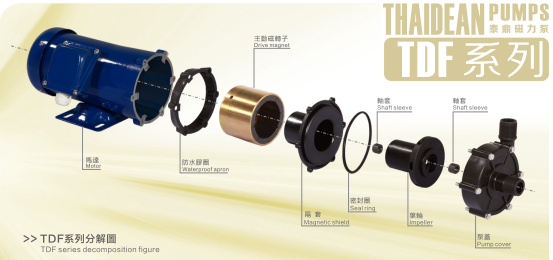

tdf decomposition figure

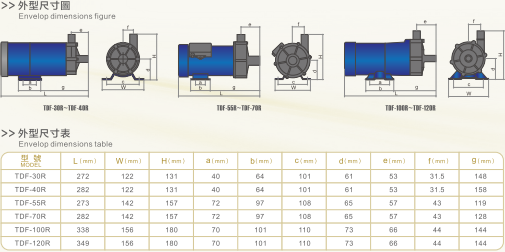

tdf envelop dimensions figure

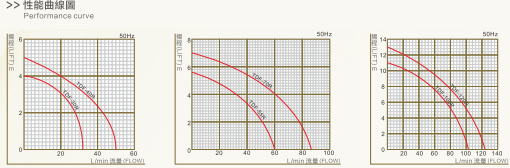

tdf performance curve

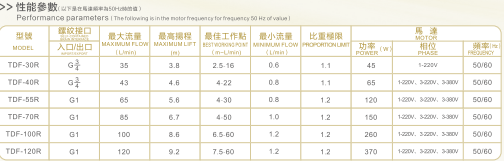

tdf performance parameters
