[good quality even better, faster service even faster]

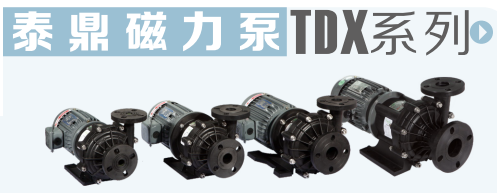

High precision, high efficiency magnetic pump

  1. the pump body adopts FRPP and PVDF material injection molding, in accordance with the different solution ph select material。

  2. suitable temperature, FRPP-70°C / PVDF-below 100°C。

  3. magnetic synchronous drive, without shaft sealing contact friction, low consumption, high efficiency,avoid media leaks。

  4. the assembly simple, the structure is exquisite performance is high,easy to tear open outfit。

  5. wide range of USES,PBC process,chemical industry,filtration cycle,etching,electroplating,surface treatment,sewage treatment and so on。

tdx

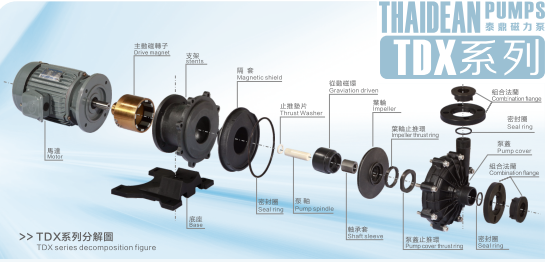

tdx decomposition figure

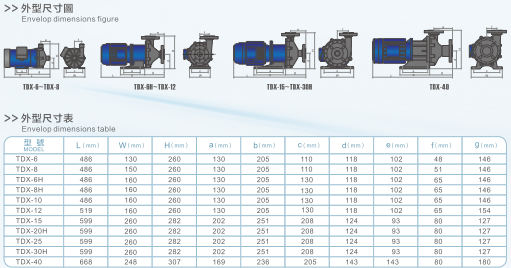

tdx envelop dimensions figure

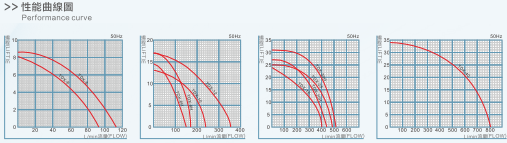

tdx performance curve

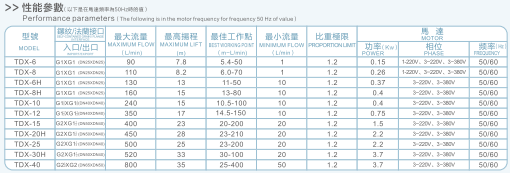

tdx performance parameters
